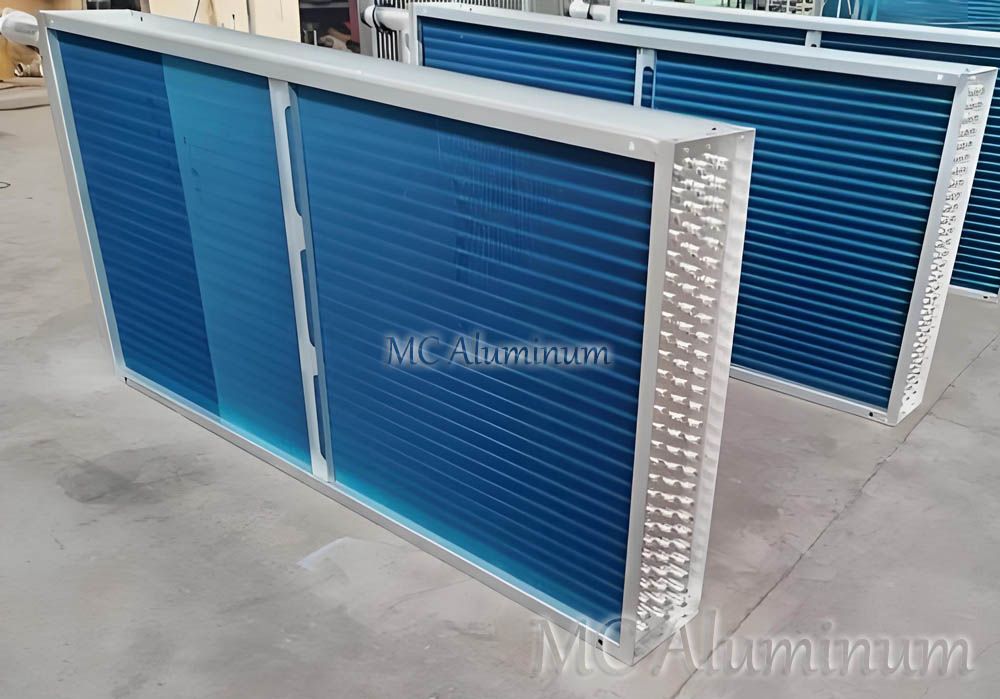

3102 air-conditioner aluminum foil is a core material for air-conditioning heat exchangers, mainly used in finned heat exchangers to enhance heat transfer efficiency. Aluminum foil stock generally refers to thick sheets or coils produced through casting, rolling, or hot rolling processes, serving as semi-finished products that are further rolled into thin foils as thin as 0.08mm for final applications.

3102 belongs to the Al-Mn series wrought aluminum alloy, containing manganese (Mn) and small amounts of silicon (Si) and iron (Fe). It is similar to 3003 alloy but with slightly lower Mn content. 3102 aluminum foil is high-strength, corrosion-resistant, oxidation-resistant, and dimensionally stable.

MC Aluminum offers thickness ranges from 0.008mm to 0.2mm and widths from 250mm to 1650mm. Available temper options include O/H22/H24/H18, each providing different hardness and strength characteristics to meet various air-conditioner manufacturing requirements.

Specifications of 3102 Air-Conditioner Aluminum Foil Stock

Mechanical Properties

Performance Advantages of 3102 Air-Conditioner Aluminum Foil

1. Excellent Corrosion Resistance
Particularly effective in humid and condensation environments, 3102 alloy ensures stable, long-term operation of air-conditioning units.

2. Good Mechanical Properties
Suitable for high-speed rolling and stamping, meeting high-strength processing requirements for heat exchanger fins, especially for ultra-thin foils.

3. Superior Thermal Conductivity
With a thermal conductivity of approximately 160–180 W/m·K, 3102 foil ensures rapid heat transfer between refrigerant and air, improving cooling efficiency.

4. Strong Adaptability for Subsequent Processing
Bare 3102 foils accept hydrophilic or hydrophobic coating easily, forming the basis for blue, gold, or hydrophilic foils.

5. High Strength and High Elongation
Even when rolled to 0.08mm or thinner, 3102 maintains excellent tensile strength and elongation.

6. Cost-Effective
Provides excellent performance while maintaining reasonable cost advantages compared to higher-performance alloys.

Applications of 3102 Air-Conditioner Aluminum Foil

• Air-conditioner evaporator foil

• Air-conditioner condenser foil

• Hydrophilic aluminum foil base material

• Coated aluminum foils

• Finned materials for high-frequency heat exchangers

Production Process of 3102 Aluminum Foil Stock

1. Billet Casting
Aluminum ingots are processed through continuous casting and rolling to produce thick sheets, ensuring uniform composition and low inclusion content.

2. Hot Rolling
Cast billets are hot-rolled to the target thickness, refining the microstructure.

3. Cold Rolling
Multi-pass cold rolling achieves required foil thickness and improves strength.

4. Intermediate Annealing
Relieves work hardening and enhances ductility.

5. Final Cold Rolling
Precision control of foil thickness within ±0.002mm ensures consistent heat transfer performance.

6. Slitting, Trimming, and Packaging
The final products include:

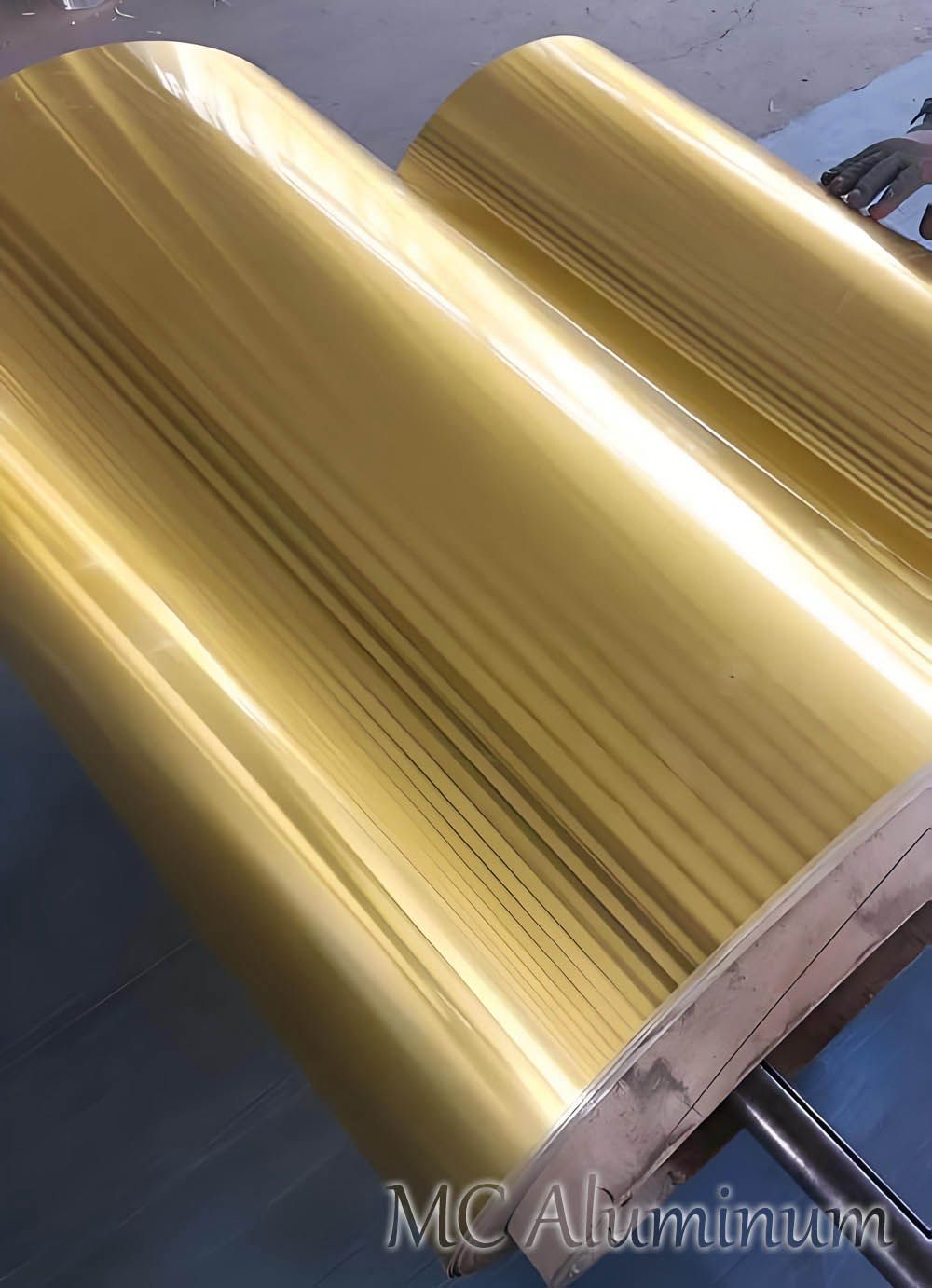

3102 air-conditioner aluminum foil master coils

Thin foils for coating processes

Price of 3102 Air-Conditioner Aluminum Foil Stock

The current market price is approximately US$2181 to US$2533. This price is not fixed and is influenced by multiple factors.

The product price depends on the price of aluminum ingots shipped that day, sea freight, processing fees, etc. Different thicknesses and alloy grades will also result in different prices; different manufacturers will also have different prices. For a detailed product quote, please send us an email with the product's alloy grade, thickness, length, etc. Our professional sales staff will provide you with a quote.
